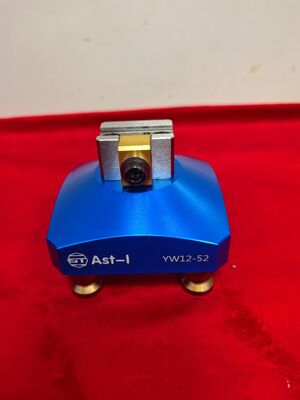

Zero Point Fixture with 18KN Locking Force
Advanced clamping fixture delivering exceptional precision and repeatability for machining and manufacturing applications. Engineered to securely hold workpieces throughout the machining process, enhancing productivity and quality.
Key Features
- 18KN Locking Force - Ensures secure clamping and cycle time reduction up to 80%
- Exceptional Repeatability - Maintained within 0.005mm for consistent results
- High Accuracy - 0.01mm accuracy rating for precise positioning
- Compact Design - 208×106×25mm dimensions for easy integration
- Single Clamping Type - User-friendly and efficient securing process
- Extended Lifespan - 1 to 5 years depending on usage and maintenance
- Wide Compatibility - Works with 3-axis vise and 5th axis self-centering vise systems
Technical Specifications
| Model |
AST SK96-205 |
| Dimensions |
208×106×25mm |
| Repeatability |
Within 0.005mm |
| Accuracy |
0.01mm |
| Clamping Type |
Single Clamping |
| Locking Force |
18KN |
| Weight Range |
5-20 Kg (varies by model) |
Applications
Essential for precision machining in aerospace, automotive, mold making, and general manufacturing. Ideal for CNC zero point applications, multi-axis machining centers, rapid prototyping, and tooling setups where speed and accuracy are critical.
Customization Options
The AST SK96-205 offers OEM support for customization to meet specific customer requirements. Adaptable for 4-axis operations and 5-axis fixture configurations, providing flexibility for complex machining environments.
Support & Services
Comprehensive technical support including installation guidance, troubleshooting, maintenance tips, calibration services, and training sessions. Access to product updates, software upgrades, and genuine replacement parts.
Frequently Asked Questions
What is the brand and model number of the Zero Point Fixture?
Manufactured by AST with model number SK96-205.
What are the main applications of the AST SK96-205 Zero Point Fixture?
Primarily used for quick and precise workpiece positioning and clamping in CNC machining and manufacturing processes.
How does the AST SK96-205 improve machining efficiency?
Enables faster setup times with quick changeover of workpieces without losing accuracy, significantly improving overall machining efficiency.
What materials is the AST SK96-205 Zero Point Fixture compatible with?
Compatible with a wide range of materials including metals, plastics, and composites commonly used in manufacturing.
Is the AST SK96-205 Zero Point Fixture easy to install and operate?
Yes, features a user-friendly design that allows for easy installation and operation, suitable for both novice and experienced operators.
